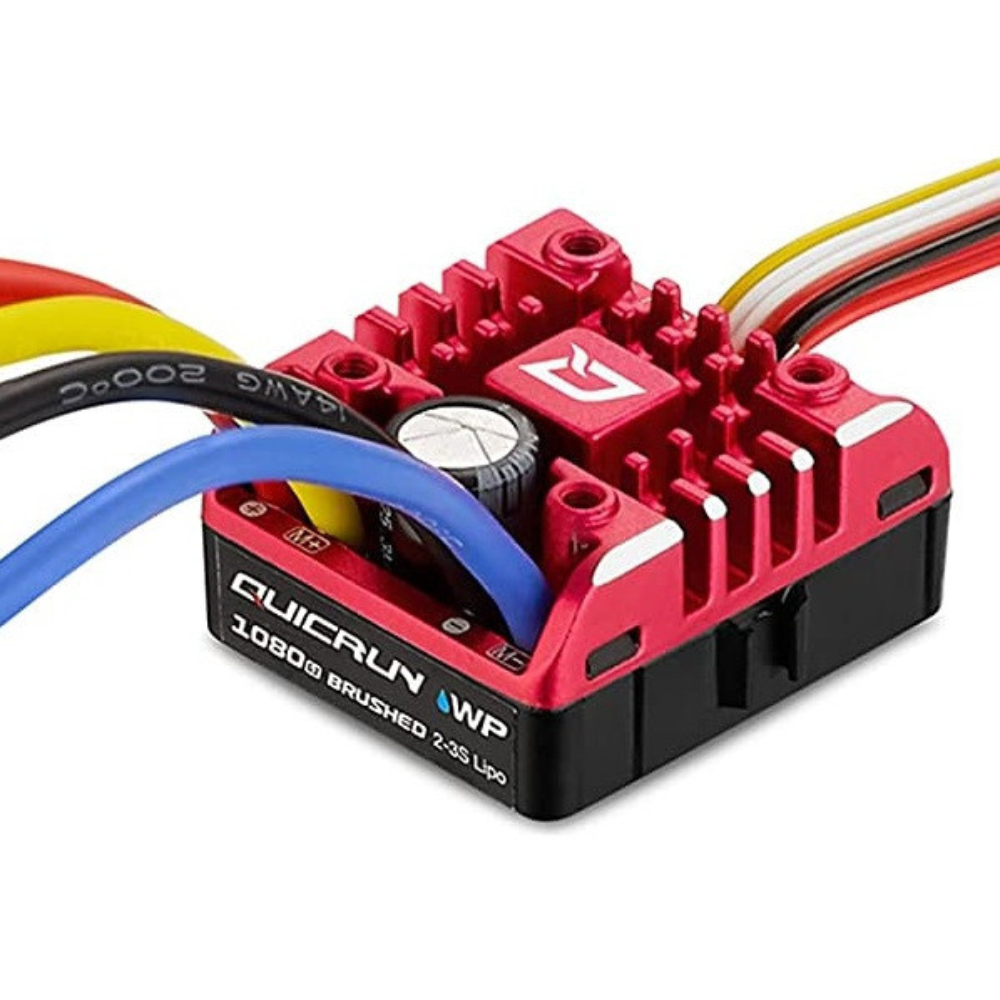

Hobbywing QUICRUN WP 1080 G2 Brushed ESC (2-3S)

Specifications

Product Name QuicRun WP 1080 G2 Brushed for RC Rock Crawler

Product Number 30120202

Type: Scale 1/10th

Brushed

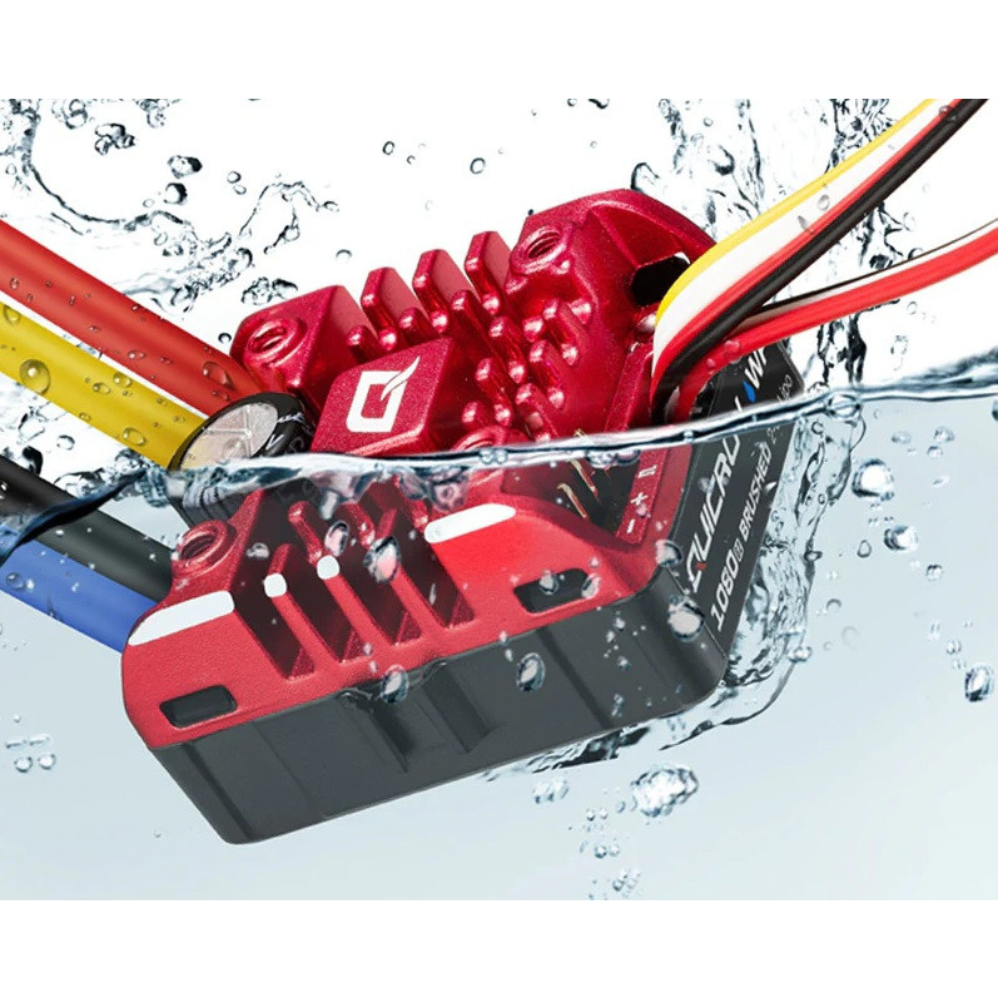

Waterproof

Specifications

Cont./Peak Current 80A/400A

Input Voltage 2-3S Lipo

BEC Output 6V/7.4V/8.4V @4A，6A Peak.

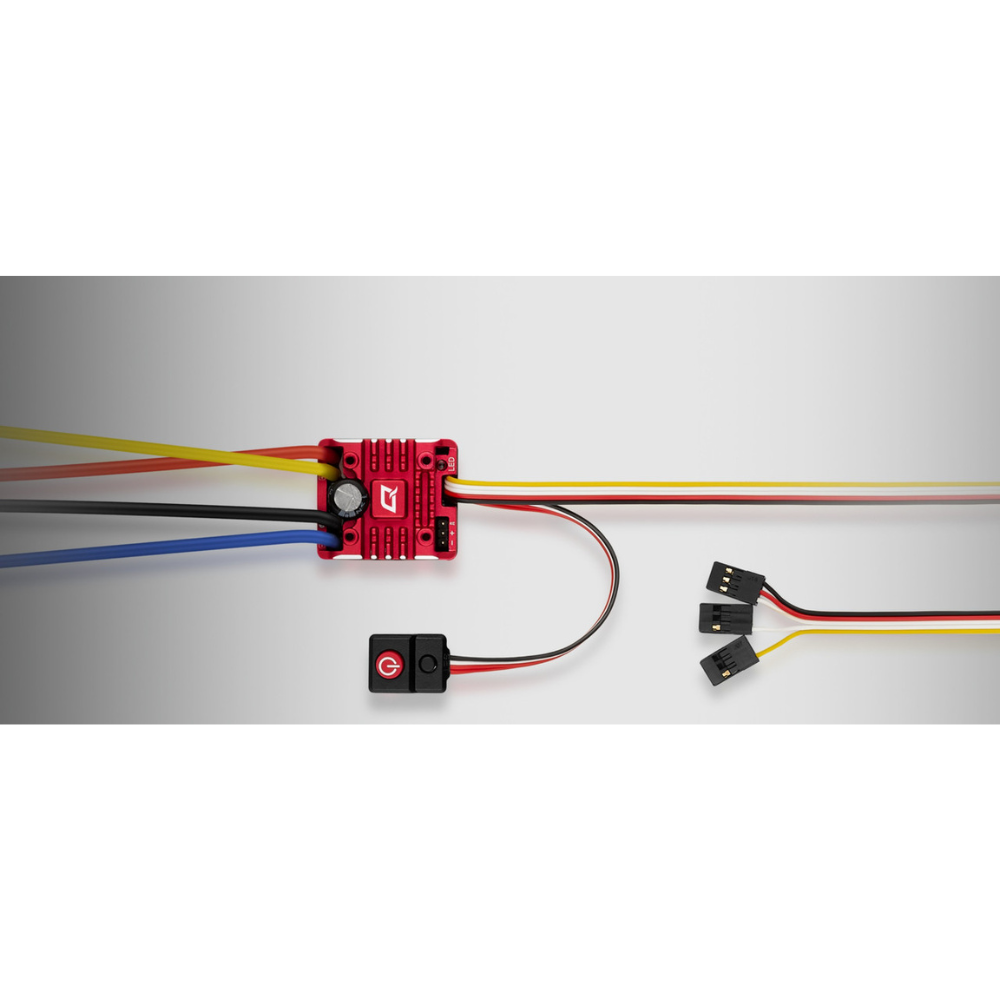

Wires & Connectors

Input Wires Black-14AWG-200mm / Red-14AWG-200mm

Output Wires Yellow-14AWG-200mm / Blue-14AWG-200mm

Input Connectors XT60 Connectors

Output Connectors 4.0mm Bullet Connectors (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via SET Button on ESC

Supported LED Program Box

Supported LCD G2 Program Box

Not Supported OTA Programmer

Not Supported Program Port

Separate Program Port

Firmware

Firmware Upgrade Not Supported

Size & Weight

Size 37.2X31.9X18.4mm

Weight 70.2g (w/Wires)

Applications

Motors: 540&550 Size Brushed Motors

Vehicles 1/10th Rock Crawlers
