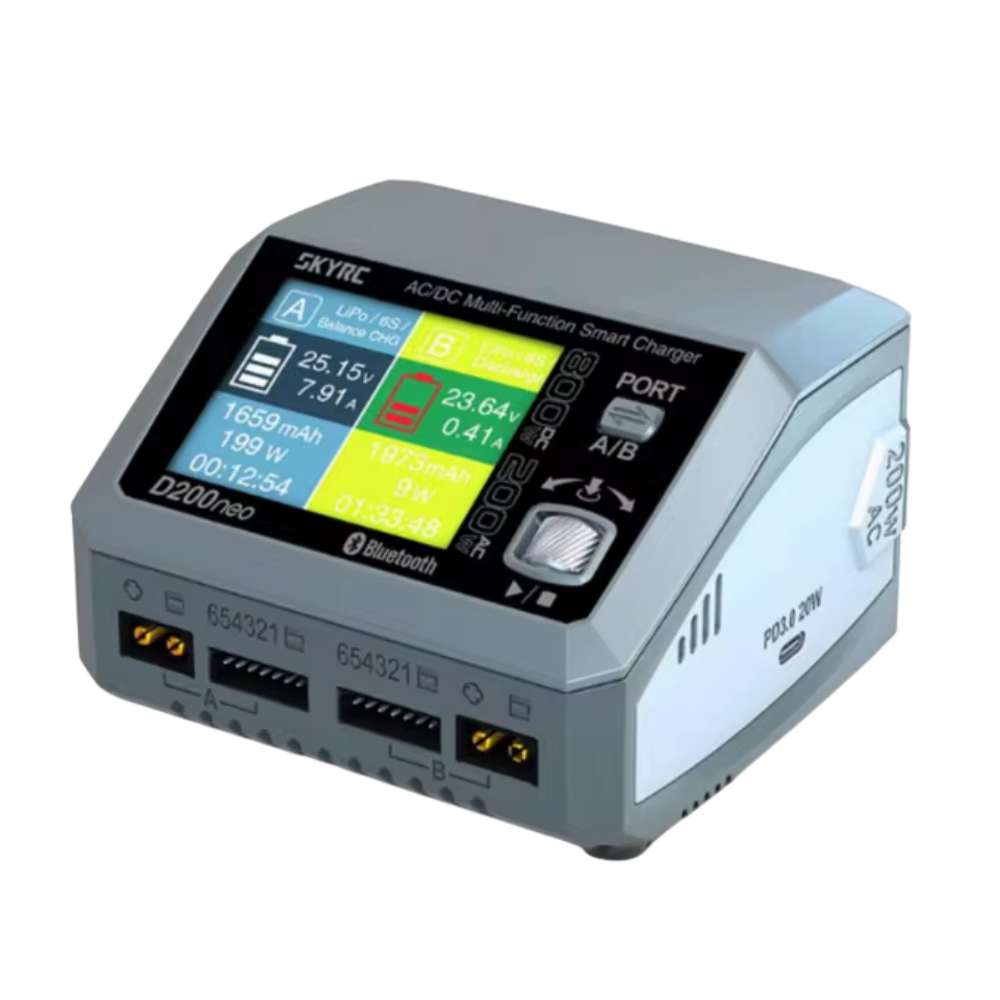

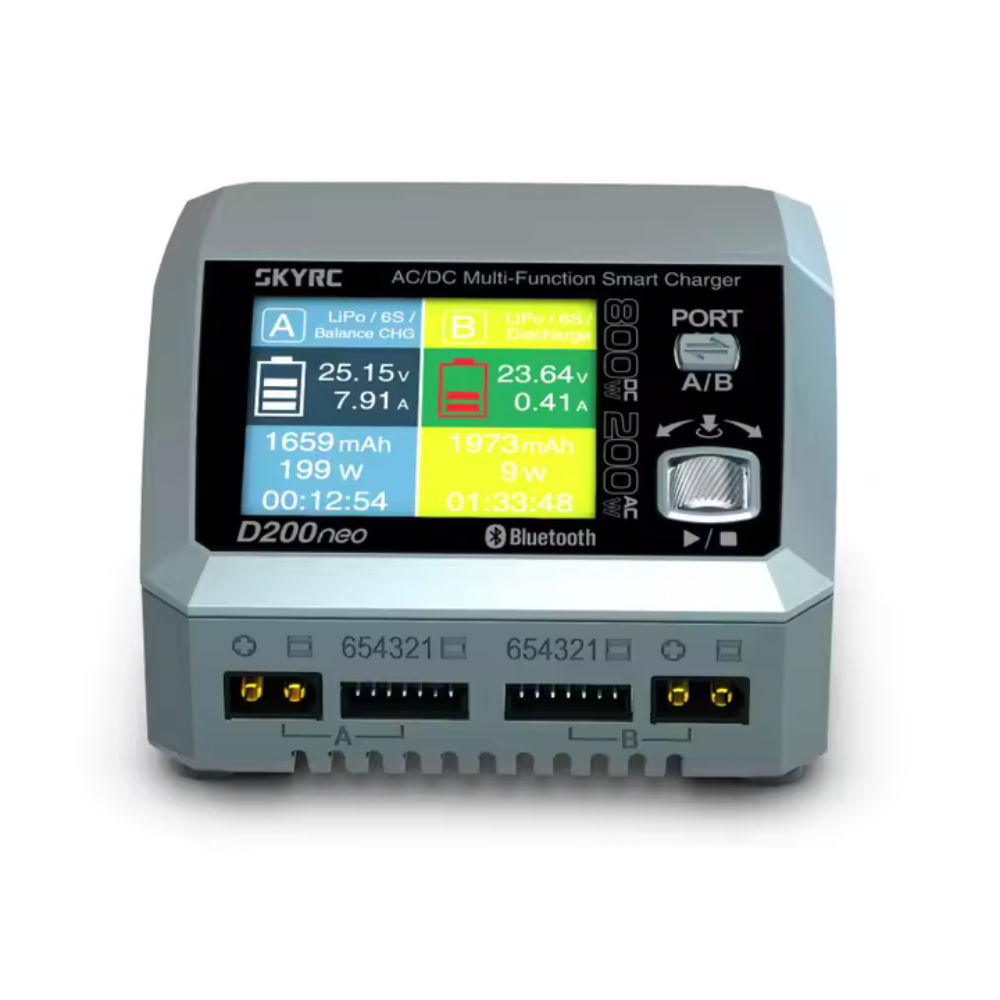

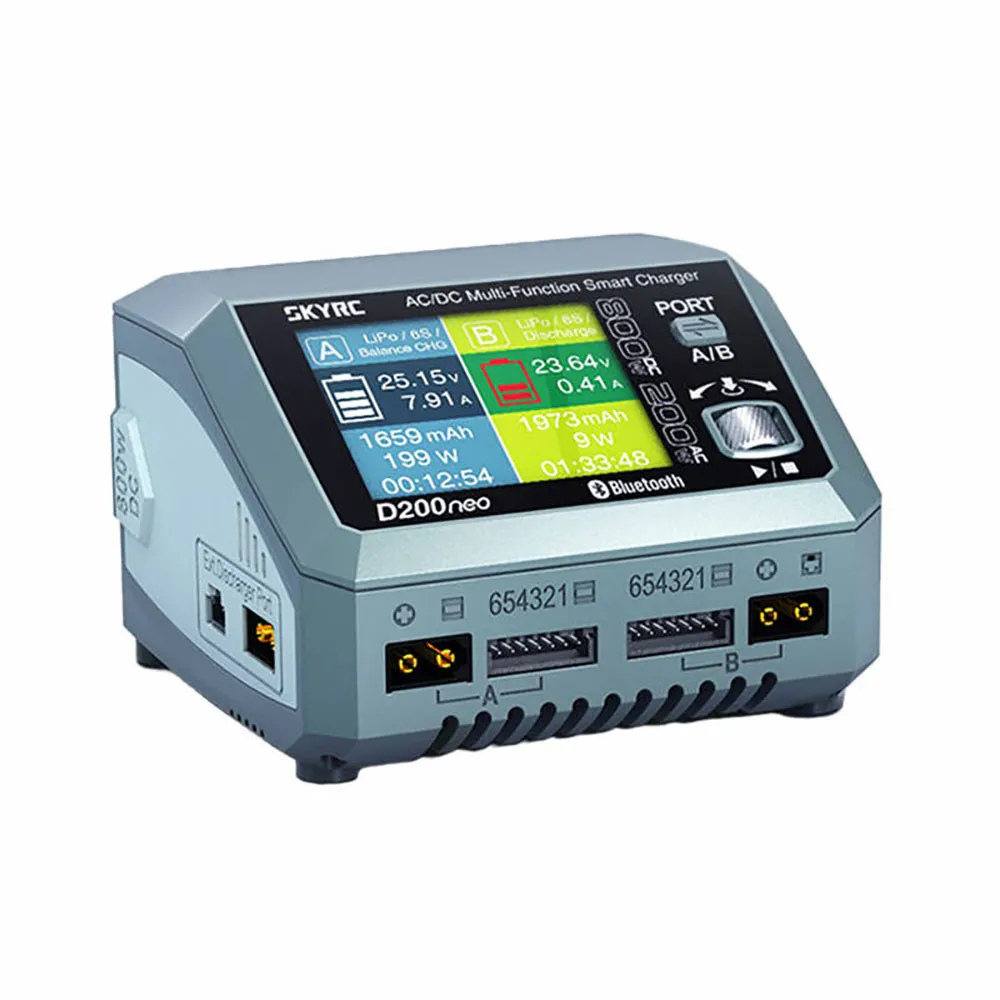

SkyRC D200neo AC/DC Multi-Function Smart Charger

Push your next RC racing trip beyond the edge with SkyRC D200neo!

The Arm Cortex-M4¹ chip takes our most versatile, dual output D200neo into another dimension with a built-in DSP instruction. The chip core features a Floating Point Unit (FPU) that accelerates single precision floating point math operations and supports all ARM single precision instructions and data types.

Specifications:

DC Input Voltage: 10-30V

AC Input Voltage: 100-240V 50/60HZ

Charge Wattage:

AC: 200W MAX

DC: 800W MAX

Discharge Wattage:

Main port: 10W;

Balance port: 37W MAX

External discharge: 350W MAX

20W USB-C Power Delivery:

QC3.0: 5V=3A, 9V=2A, 12V=1.5A 18W

PD: 5V=3A, 9V=2.2A, 12V=1.67A 20W

Battery

Battery Types/Cells:

LiPo/LiHV/LiFe/LiIon: 1-6S

NiMH/NiCd: 4-15S

Pb: 3S/6S/12S

Charge current

LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-20.0A

Parallel：20.0-35.0A

Discharge current

LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A

External discharge：0.1-40.0A

Balance current

LiPo/LiFe/LiIon/LiHV：1.5A MAX

Operation

LiPo/LiFe/LiIon/LiHV: Balance, Charge, Discharge, Storage, Parallel

NiMH/NiCd: Charge, Cycle, Re-peak, Discharge

Pb: Normal, AGM Charge, Cold Charge, Discharge

Working and Storage

Operating temperature: 0℃-40℃

Working humidity: 0%-75%

Storage temperature: -10℃-70℃

Storage humidity: 0%-75%

Case Material: Plastic
