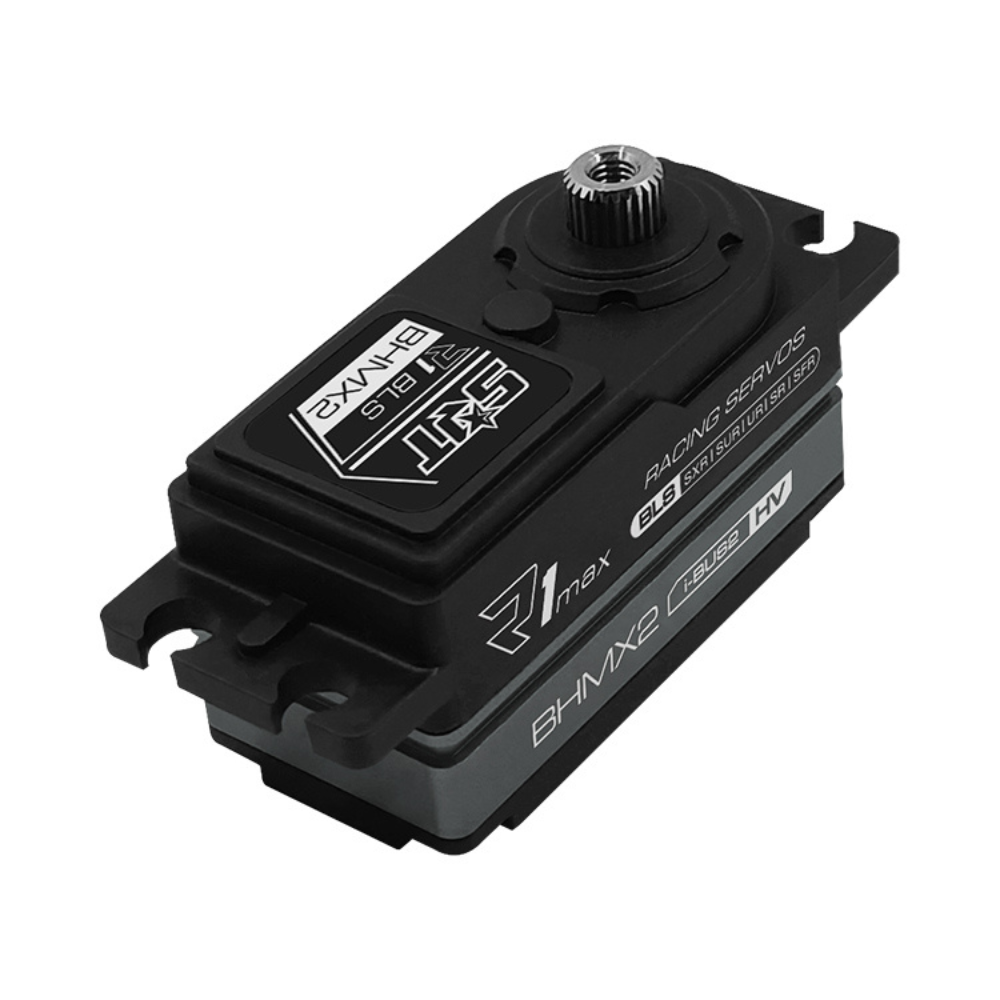

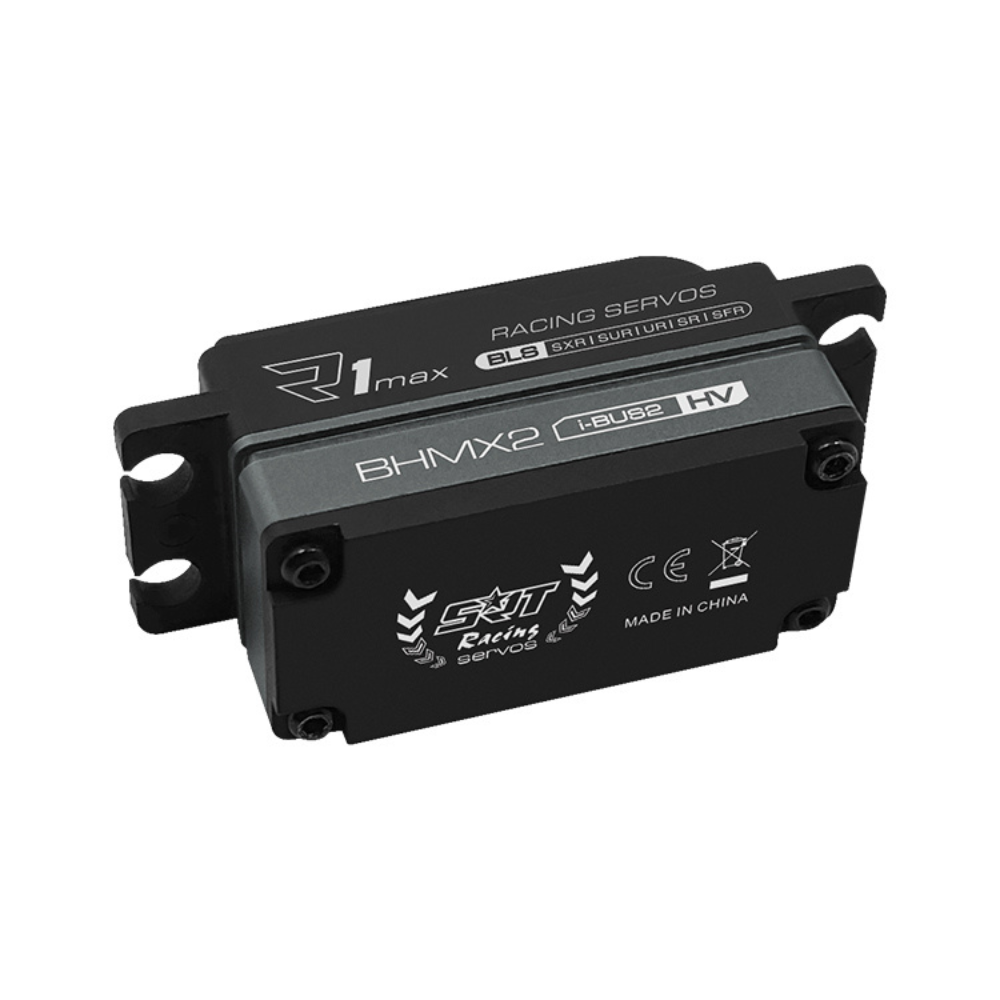

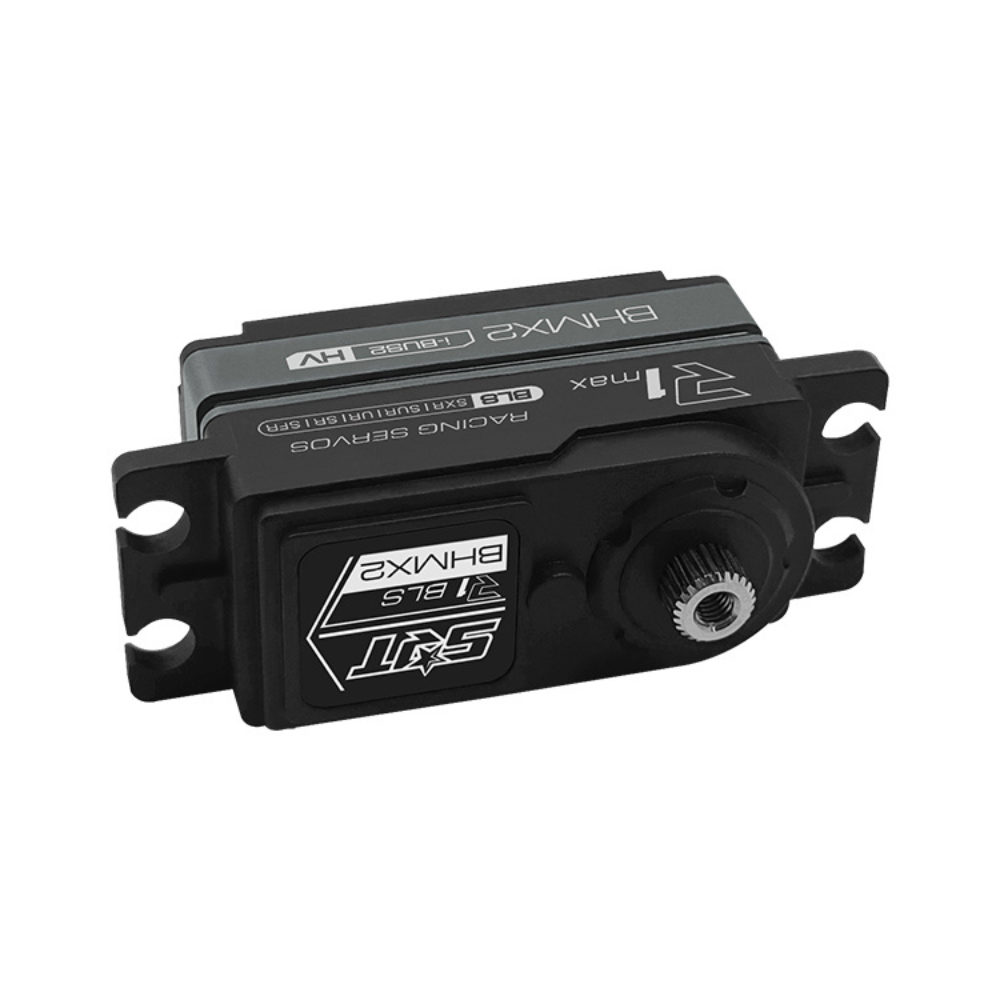

SRT BHMX2-80mm Wire 1/10th HV Brushless Servo
SRT BHMX2-80mm Wire 1/10th HV Brushless Servo
Couldn't load pickup availability
KEY FEATURES
& Ideal for 1/10 on road applications
& NEW 80mm wire
& Incredible efficiency and low power consumption
& Extremely sensitive response speed
& Aluminum case for good heat dissipation
& NMB dual main bearings
& Supporting SR, SSR, SFR, SUR, SXR multiple ultra high speed modes
& 25T output shaft
& 1-Year Limited Warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | Dimension (mm) |
Weight (g) |
|||
| Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
||||||
| BHMX2 | 0.080 | 15.0/208.3 | 0.073 | 18.0/250.0 | 0.065 | 23.0/319.4 | Titanium +7075 | Brushless | Semi-metal | 41.0*20.0*23.3 | 42.0 |
Application :
1/10 Electric Touring
1/10 2WD Electric Buggy
1/10 Nitro Touring 1/8 Nitro Touring
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium + 7075
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.080 sec/60 degrees at no load
operating speed (7.4v): 0.073 sec/60 degrees at no load
operating speed (8.4v): 0.065 sec/60 degrees at no load
stall torque (6.0v): 15.0kg.cm (208.3 oz/in)
stall torque (7.4v): 18.0kg.cm (250.0 oz/in)
stall torque (8.4v): 23.0kg.cm (319.4 oz/in)
potentiometer drive: direct drive
dimensions: 41.0x20.0x23.3 mm /1.61x0.79x0.92 in
weight: 42.0g (1.48 oz)
connector wire length: jr 180 mm（Specifically designed for nitro car steering）
connector wire length: jr 80 mm（Specifically designed for electric car）
SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos are available to be customized for easy installation by OEM order.
